Crash

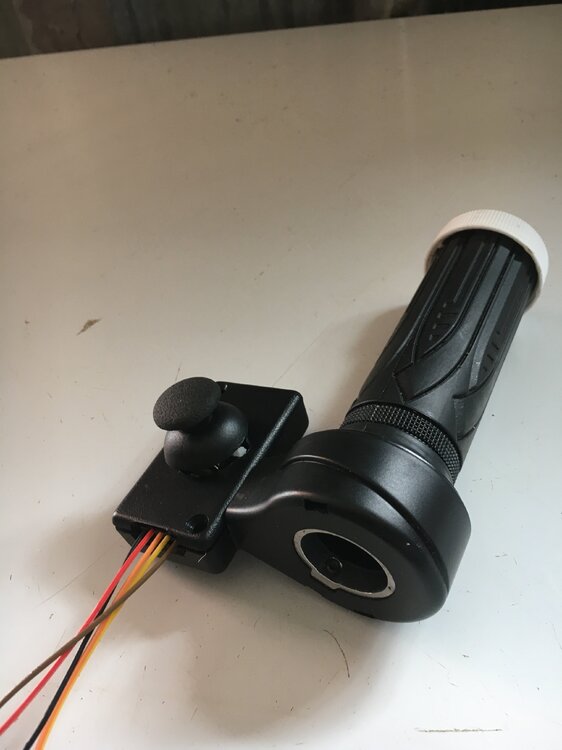

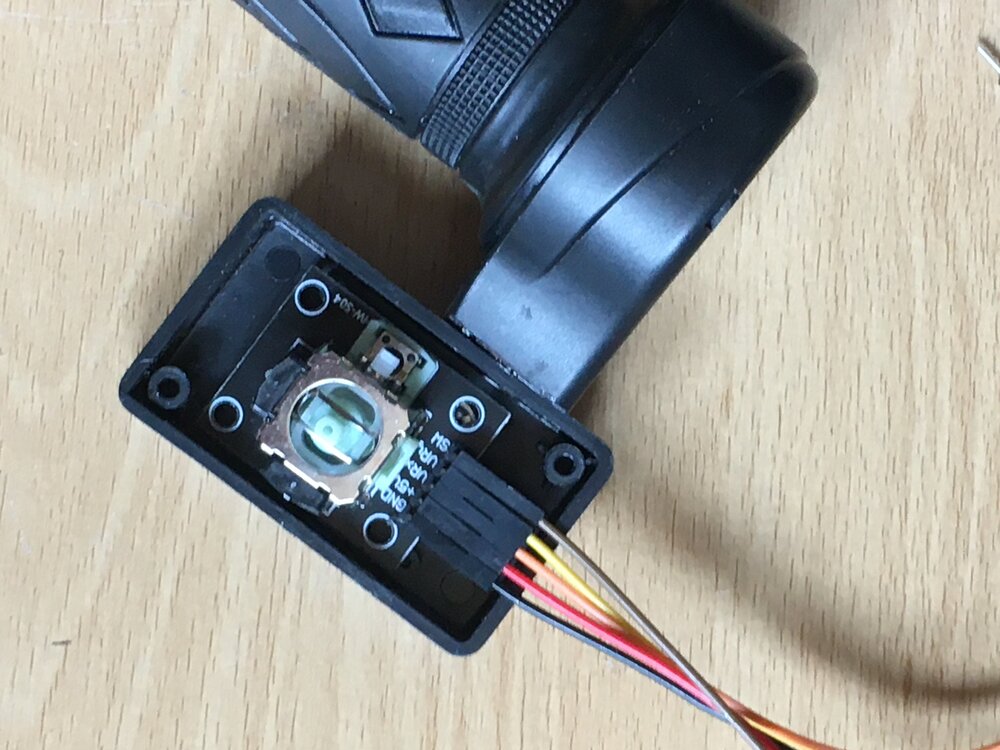

More progress on the base I found a small knurled knob for the pot and used a piece of elastic shoelace joined with an electrical connector. I had to cut the top mounting on the damper as it wasnt wide enough to take the top bearing. After it was all bolted in position it worked well. The next part will be the throttle and thumb switch.

Who are these grown ups of which you speak?

The Leonardo works. BUT it isnt very obvious how to load a downloaded sketch or even how to download the sketch. After quite a while I have the board set up as a 5 axis controller and it tested OK. Now to find the sketch I need, that is 4 axis, one 4 way hat switch and maybe 10 or so buttons.

So far I have repurposed a pair of speaker wall mount brackets for the sides. Then marked out the travel of the arm and the pivot point. I transfer drilled the up and down stops, pivot point, and the two spacer bolts. I then drilled the pivot bearing mounting holes and fitted the bearings. I used a long 8mm bolt as the pivot and drilled the arm 8mm and bolted it in position I was going to use gears to rotate the pot but the ones I got from amazon were too small. I thought the best way would be to use pulleys. I made the large one for the pivot out of a plastic waste pipe union and put a piece of MDF which I cut out with a hole saw to center it All bolted up it looks like this More later.

Based on this one https://www-cruzdesanandres-com.translate.goog/foro/viewtopic.php?f=10&t=3314&sid=01462609f413cd14c6a275284563d82a&_x_tr_sl=auto&_x_tr_tl=en&_x_tr_hl=en-GB

I have just realised that we are going away for a few days starting on the 21st so I cant make it. Should be there for the rest of it though. How many missions will we be running?

Slow progress, the Leonardo has just arrived so I will try out the joystick library this week

I think it might be an idea to look at making next year a Dogz day out if Legends havent got a date for 2024

I am having a nightmare with the project. I cant find a sketch that will work with my board and the damper set up is far too stiff. Looks like buying a leonardo is the only way forward with this.

I am not doing the columns and rows stuff. Its a mega plus board https://www.amazon.co.uk/dp/B09C1S4TW8/?coliid=IDE4DQ6ANF77N&colid=3GJ0HH41UWZCS&psc=1&ref_=lv_ov_lig_dp_it Looks to me like it does 53 buttons

Question for Wingy, when setting up Arduino in sketch, do I have to tell it how many buttons I am going to use or does it just see what I use when I press them?

I have started "cutting metal" as we used to say in the aircraft industry. More info and photos next week.

Still wont work.

After a lot of thought, well not that much, I have decided to go ahead with the project. Stuff might be inbound next week and questions will be asked. Like do I buy this https://www.amazon.co.uk/dp/B09C1S4TW8/?coliid=IDE4DQ6ANF77N&colid=3GJ0HH41UWZCS&psc=1&ref_=lv_ov_lig_dp_it or this https://www.amazon.co.uk/dp/B085RHTBJT/?coliid=I3365O26UF01P1&colid=3GJ0HH41UWZCS&psc=1&ref_=lv_ov_lig_dp_it and do I need this https://www.amazon.co.uk/dp/B01G8F9M9A/?coliid=ILIQ5OVUVSOEV&colid=3GJ0HH41UWZCS&psc=1&ref_=lv_ov_lig_dp_it or this https://www.amazon.co.uk/dp/B014SGTP20/ref=sspa_dk_detail_4?psc=1&pf_rd_p=15c0cc83-c6c5-4d44-aa3d-0de17a9f3682&pf_rd_r=P9JFK2CCBRVTCHCYD5J4&pd_rd_wg=YuDiu&pd_rd_w=rM2M7&content-id=amzn1.sym.15c0cc83-c6c5-4d44-aa3d-0de17a9f3682&pd_rd_r=957852f2-0b4d-4a7a-acf4-73a1bf8f7e1e&s=industrial&sp_csd=d2lkZ2V0TmFtZT1zcF9kZXRhaWw other stuffz and questions later

Yes. You would need a board to connect the pots to. I have used one of these https://www.leobodnar.com/shop/index.php?main_page=product_info&cPath=94&products_id=180&zenid=faa42252a81912d8d178b050e81c6675 Its expensive but easy to use. Buy a bag full of switches from ebay and build a button box. Lots of videos on youtube.

This is what I fancy building

Will try it tonight and we will see.

I feel that I should be able to help out. not interested in using the dogz server though

Is this right?

Steve Howe 1x Me410 plus a 109. The 109 was already a bit damaged as it was smoking so maybe a shared kill?

One excellent cockpit there Wingy You might have tempted me into building one, then I will have to buy a heli module I still cant work out how the pivot works. Surely not on the pot stem? Any twist grip on it?

Is the old joystick board in the CD player chassis? I still cant work out how it is mounted on the chair. I love this home brewed stuff. Is the throttle on the arm or have you mapped that to other hardware?

Where and how is the axis located?

For Friar and anyone else Very interesting and great ideas. https://theairtacticalassaultgroup.com/forum/showthread.php?t=29447&highlight=colective
